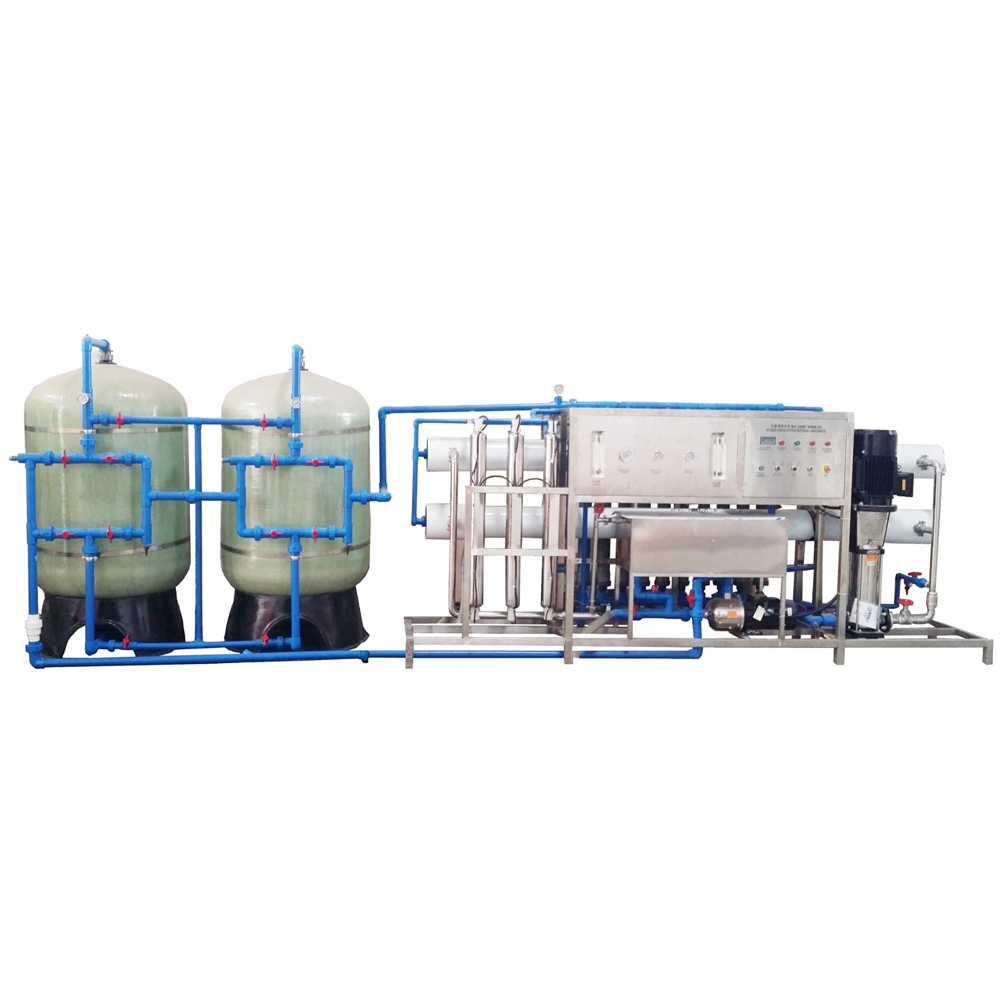

8000 liters per hour RO/water treatment/purification system

8000 liters per hour RO/water treatment/purification system

0.00
0.00


Introduction and Machine features

With the world latest reverse osmosis membrane technology on the water treatment systems, we transfer the fresh water (rain water, well water, lake &river water, tap water) into sweet drinking pure water.


·         100% bacteria will be removed from the water.

·         With U.S.A/Japan imported RO membranes and Japan/Germany/France/Taiwan imported electrical parts.

·         Quartz sand filter, to remove remaining suspended particles

·         Activated carbon filter, to improve the taste of the pure water

·         Precision filters to remove the solid in the water

·         UV system to sterilize the water

·         Ozone system to keep the pure water fresh for longer time

·         The output capacity can be made from 300L per hour to 50000Lper hour based on different model machine

·         SS304 stainless steel for machine racks, fiber glass for tanks and housing shells, PVC-U pipes and joints (also, they could be replaced by stainless steel, but depend on the water source.)

·         Safe and reliable electrical system, with auto stop protection in emergency happens

·         With auto and manual auto back-wash system for RO membranes.


Basic parameter

No.

Name

Brand /Material

Place

Number

1

Main Housing

Fiber Glass

China

1 pcs

2

Raw water pump

Lingxiao

China

1 pcs

3

Quartz sand filter

Fiber Glass

China

1 pcs

4

Active carbon filter

Fiber Glass

China

1 pcs

5

40Security filter

Fiber Glass

China

1pcs

6

Multi-phase Pump

Nanfang

China

1 pcs

7

Ro membrane(8040)

Hydranautics/Troy

USA/Japan

8pcs

8

Ro membrane shell

Fiber Glass

China

4sets

9

Contactor AC

LG

Korea

2 pcs

10

Middle relay

Omron

Japan

2 pcs

11

pressure meter


JointVeture

4 pcs

12

Pressure switch


China

1 pcs

13

Flux Meter


China

2 pcs

14

Conductivity Meter


China

1 pcs

15

Pipes&Valves

PVC-U

China

1 pcs
